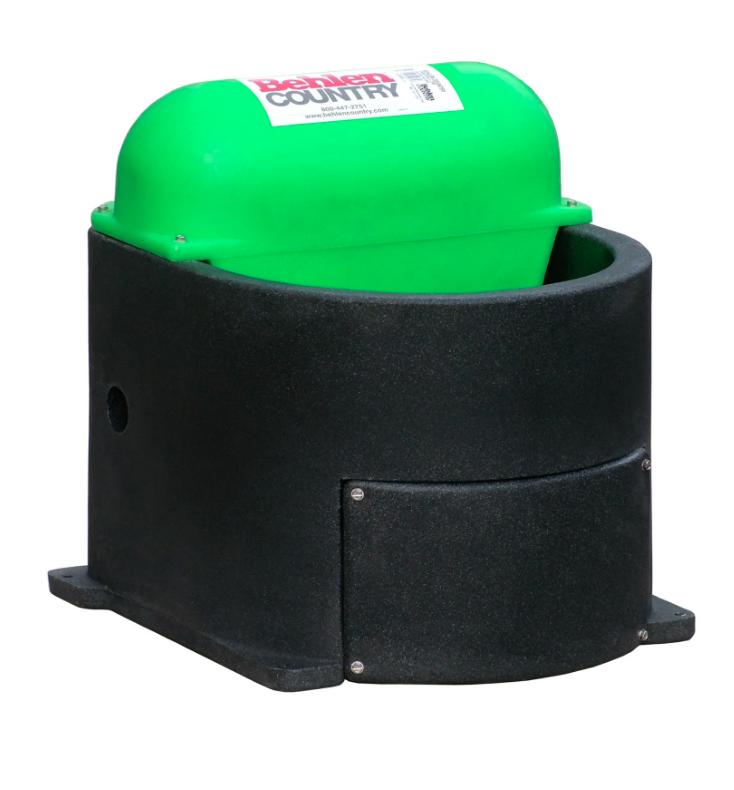

Behlen Companion & Horse Waterer with Heat - AHW30

The Behlen small Companion and horse waterer is a one-piece, heavily insulated waterer, designed of heavy poly which is rust and corrosion Free. The Thick styrofoam floor keeps the frost line below the waterer.

The Extra Thick Urethane foam insulation in the walls provides over four times the insulation of competitors' models (tested to -20 degrees F). The 75 Watt, thermostatically controlled, infrared heat pad is located directly under the water trough for ample heat coverage. The thermostat turns on at 42 degrees. The heat pads are totally isolated from the animals to prevent danger from shock. i

FEATURES

• Once-piece heavily insulated poly design will not rust or corrode
• The thick styrofoam floor keeps the frost line below the waterer
• Valve is non-siphoning and easy to maintain
• Built-in hold downs
• Removable drain plugs for easy cleaning
• Ample access door to access the waterlines and heater
• Fully assembled and ready to install
• UV infused poly will assure long life and resistance to color fade in outdoor use

VALVE

NOTE: The standard valve is ideal for water pressures up to 55 PSI. An additional pressure regulator is recommended for higher water pressures.

GRAVITY FLOW OR LOW PRESSURE SITUATIONS: A special, low pressure valve is available part number #54130328 or the complete assembly #54130338

INSTRUCTION MANUAL

Download instruction manual
