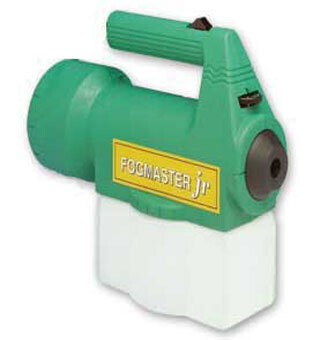

The baby of the Fogmaster family, the Jr 5330 is constructed of corrosion-resistant materials. The standard unit comes with a 1 qt tank, which makes it light and maneuverable.
The Fogmaster Jr is easy-to-use. Twist the power head to detach the tank. Pour in your solution. Another
half twist and you're good to go. Slide the switch on the handle and adjust the rotary valve to set droplet size.
The Fogmaster Jr - for those 'in between' jobs - too small for an industrial unit, too large for a trigger sprayer or pump-up. Tank - High density
polyethylene.
When a smaller or less expensive fogger is needed, consider the Jr. Among its many uses are:
Motor | 533010: 1/4 Hp, 120VAC 50/60 Hz, 3 Amp; 533020: 1/4 Hp, 220-240VAC, 50/60 Hz, 1.5 Amp |
Liquid Capacity | One quart [950 ml] Two quart [1.9 liter] |
Chemicals |
Any lightweight liquid*. Nozzles can atomize both oil-based and water-based fluids. [* Do not use to apply flammable liquids.] |
Particle Size | 15-40 microns, adjustable. |
Discharge Rate | 0-3 oz [120 ml] /min, adjustable |
Power Cord, Plug Options | 9 ft, NEMA 1-15 [US] 2.5 m, PSE Japan plug 25 ft, Euro plug 25 ft, UK plug |
Materials of Construction |
Nozzle and Housing - nylon |
Regulatory Compliance |
UL, CSA, CE, PSE |
Dimensions | Height: 10 in [25 cm] Width: 4.5 in [11 cm] Length: 11 in [28 cm] |
Packaging | Single unit Cases: 6, 12 or 18 units Pallet: 105 units |
Shipping Weight |
Single unit: 5 lb [2 kg] |
Warranty | One year |
