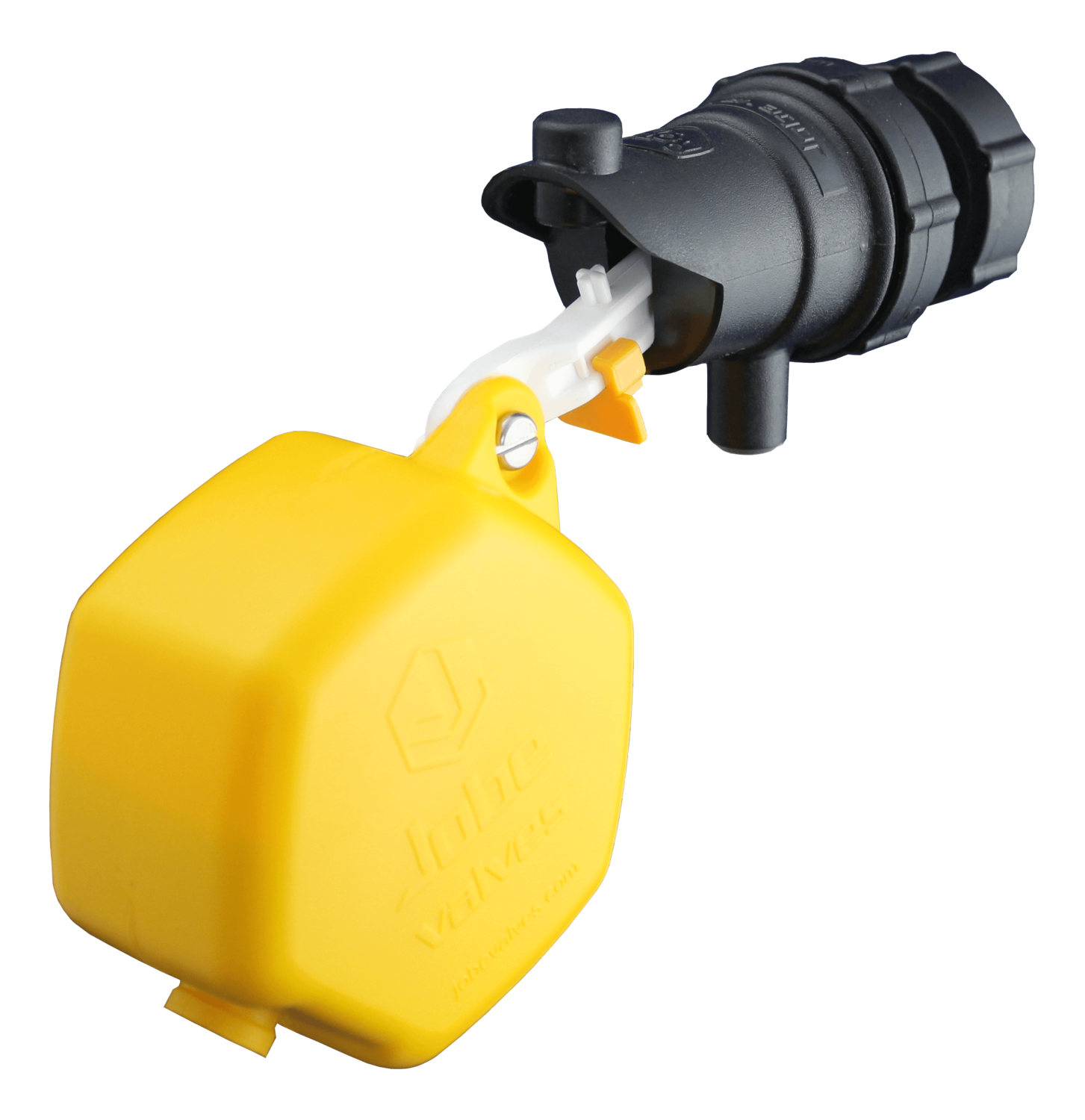

Jobe Rojo Compact Float Valve Long Tail- Various Inlet Sizes

The Rojo Compact is the optimal choice for low flow when space is limited as the narrow weighted float makes for a compact versatile design. The Jobe Rojo Compact Valves are float operated valves for automatic filling of water storage vessels. The Rojo Compact can be mounted above or below water level. It is a simple mechanically operated valve. The Rojo Compact is the optimal choice for low flow when space is limited as the narrow weighted float makes for a compact versatile design.

Pressure range 0-150 PSI

Operating temperature up to 140F

APPLICATIONS:

Maintaining water levels in:

• Animal drinking and automatic waterer trougs
• Water Storage Tanks
• Water Cisterns
• Process applications

TIP: WHEN INSTALLING - be sure to flush the waterline before installing the valve to prevent debris from accumulating in the valve.

FEATURES

• Fits in Compact spaces
• The float is no wider than the valve
• Multiple Mounting Positions
• Fully adjustable float
• Non-corrosive Material Construction
• Flow stops when unscrewed
• Pressure range 0-150 PSI
• Has switch to lock valve in off position
• Helps to minimize water hammer

DOWNLOAD THE JOBE VALVE PARTFILL MANUAL HERE

MOUNTING POSITIONS
