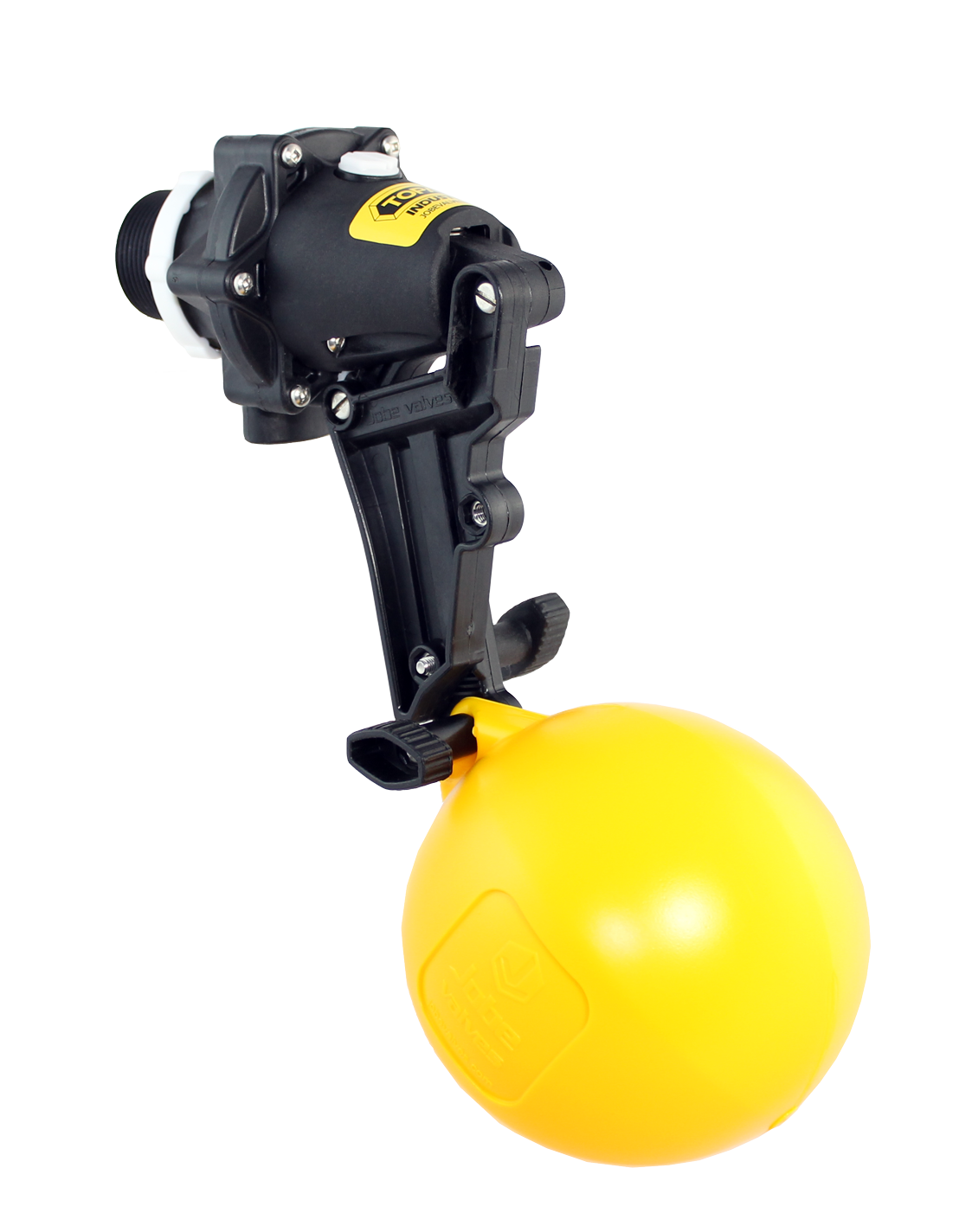

Jobe Topaz Industro 3/4" Float Valve w/DLT TPVI0075DLT

Topaz Industro Float Valves are designed to maintain water levels in applications requiring a valve with high mechanical strength and heat resistance. Some typical applications would be refilling cooling towers and storage tanks, high pressure cleaning and car wash systems as well as many light industrial, air conditioning, and irrigation installations.

DLT = Long Tail

Operating Pressure 5-100 PSI

Maximum Operating Temperature 80°C/176°F

APPLICATIONS

Maintaining Water Levels in:

• Car Wash Systems
• Water Storage Tanks
• Water Cisterns
• Air Conditioning Systems
• High-Pressure Cleaning Systems
• Irrigation Applications

TIP: WHEN INSTALLING - be sure to flush the waterline before installing the valve to prevent debris from accumulating in the valve.

FEATURES

• High-flow valve
• Compact Robust Construction
• Maximum water temperature 176 degrees Fahrenheit
• Made from approved materials

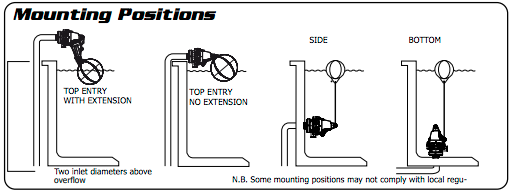

• Two mounting options, horizontally or vertically
• The valve shuts down slowly to minimize water hammer
• 20 - 60mm (¾” - 2 ½”) water level differential (increases as water inlet pressure increases)
• Pressure rating between 5-100 PSI
• No tools required to adjust the float position
• Valve has a switch to lock in off position
• Features port to connect the Frostpro Anti-freeze device

DOWNLOAD JOBE VALVE INDUSTRO FLIER

TOPAZ Industro Installation Video
