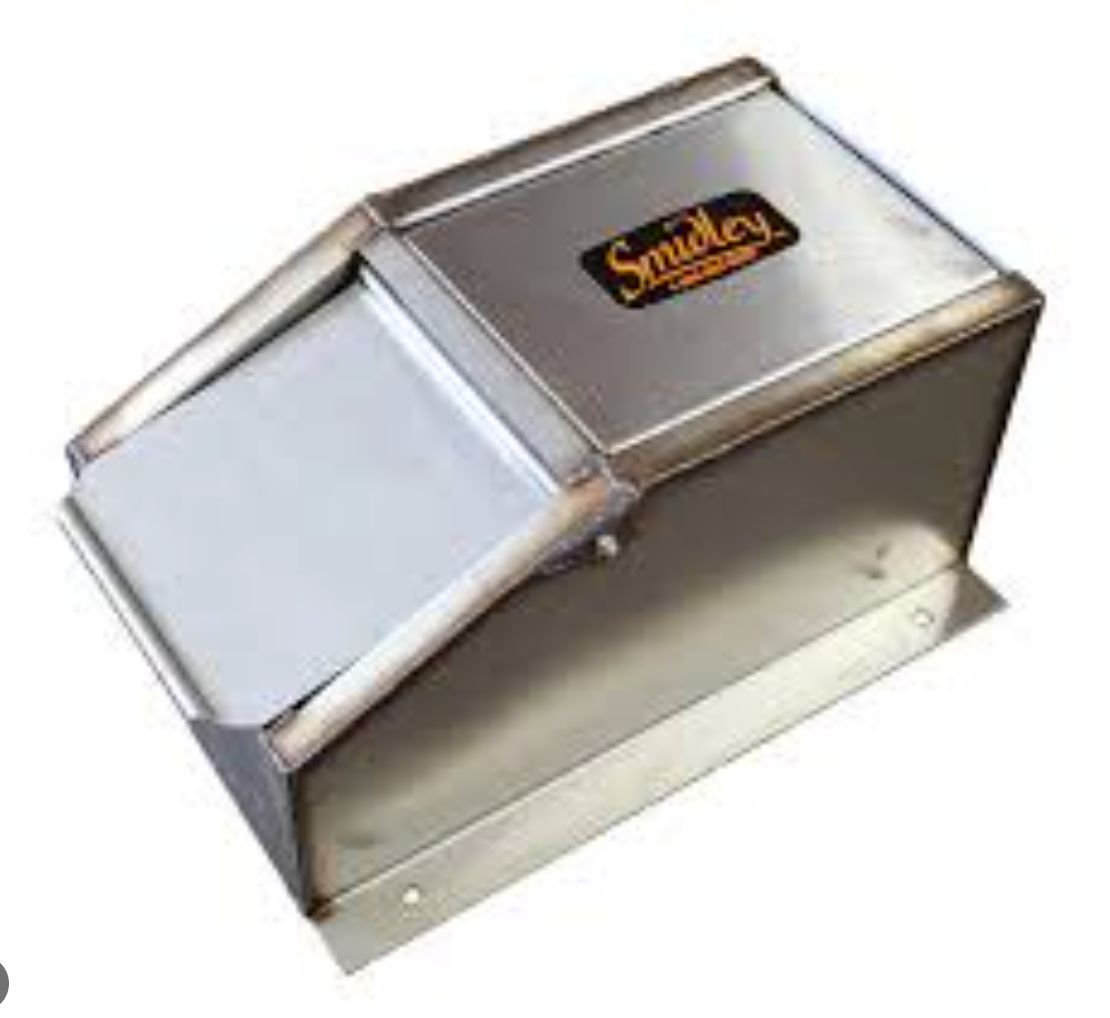

Smidley 1-Drink Stainless Steel Hog Bar (Model 9150141S)

The Smidley 1‑Drink Stainless Steel Hog Bar is the compact powerhouse hog waterer you need for tight spaces. Built with 100% 304 stainless steel, a heavy 14‑gauge body, and a 12‑gauge drink lid, this heated, insulated unit delivers clean, black-water-free drinking that pigs prefer. Features like a gravity-access top cover, easy serviceability, an adjustable thermostat, and thick Styrofoam insulation (R‑factor 2.7) ensure fast maintenance, energy efficiency, and reliable freeze protection—from small pens to loadout areas

Dimensions: 22-1/2″ W × 10-3/4″ H × 16-5/8″ L; Weight: ~35 lb; Mounting holes (ctr-to-ctr): Ends 17-3/8″, Lid side 14-5/8″
