Smucker 20 foot Sprayer Boom Kit Self-Propelled

The Smucker 20 foot self propelled kit can easily be mounted to your existing spray boom and is easy to install. Each 30" sponge section has a separate feed tube that adapts directly to the closest TeeJet or Hypro nozzle body.

The kit includes nozzle body caps to shut any tip that is not feeding a sponge section. Using special brackets, U-bolts, and risers, you will be able to easily attach the sponges to your boom quickly.

The included brackets also allow you to remove the sponges quickly without the need to remove the U-bolts.

You can quickly convert your sprayer into a weed wiper and eliminate taller growing weeds with very little chemical.

Note: Kit adapts to booms 2" and smaller

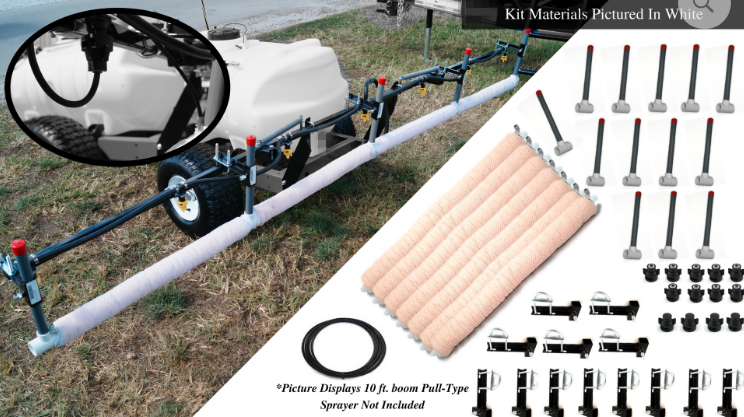

Kit Includes:

1 - Instruction Manual

13 - Bolts, 5/16X1 - part number NB3140

13 - Nut, Plated 5/16 - part number NB31PL

13 - Bolt, U, 5/16 - 18X2X3 - 11/16 - part number NBUB07

4 - Cap & Gasket, Shut off - SS-19843NYR

9 - TeeJet Nozzle, Con w/1/4 PTC & Washer - SS-QJ98588 - 1/4

22 ft. - Tubing, Black, 1/4" Solid - WW1215

13 - WW Mounting Bracket - part number WW2344

13 - T-Riser Assembly, Top Crop - part number WW2346-TC

9 - 30" Sponge Assembly - WWTC30

Download the Instruction Manual.
