Smucker Weed Wiper 90 ft. Sprayer Boom Kit Self-Propelled

The Smucker 90-foot self propelled kit can easily be mounted to your existing spray boom and is easy to install. Each 30" sponge section has a separate feed tube that adapts directly to the closest TeeJet or Hypro nozzle body.

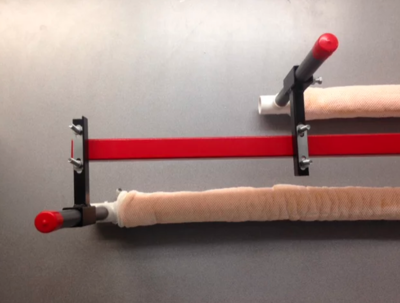

The kit includes nozzle body caps to shut any tip that is not feeding a sponge section. Using special brackets, U-bolts, and risers, you will be able to easily attach the sponges to your boom quickly.

The brackets also allow you to remove the sponges quickly without taking off the U-bolts.

You can quickly convert your sprayer into a weed wiper and eliminate taller growing weeds with very little chemical.

Note: adapts to booms 2" and smaller.

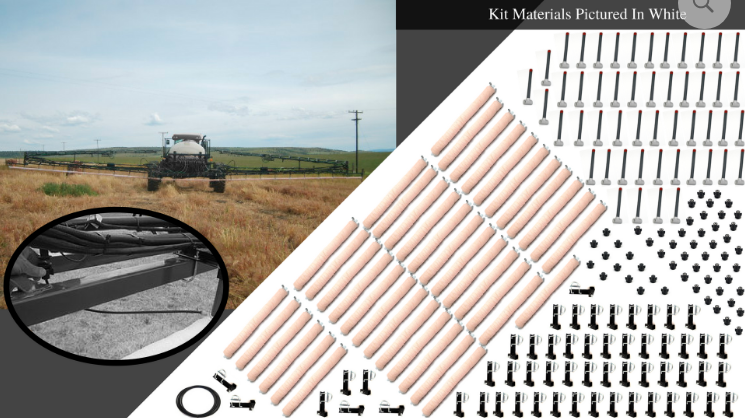

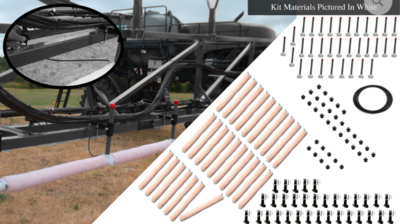

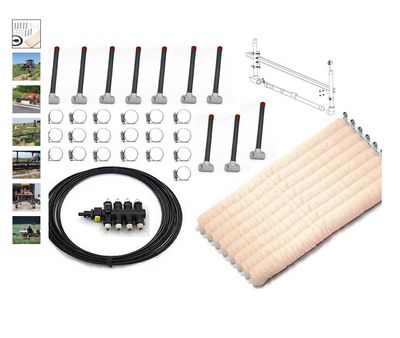

THE 90 FOOT SPRAYER BOOM FEATURES AND INCLUDES

1 - Instruction Manual

56 - Bolts, 5/16X1 - part number NB3140

56 - Nut, Plated 5/16 - part number NB31PL

56 - Bolt, U, 5/16 - 18X2X3 - 11/16 - part number NBUB07

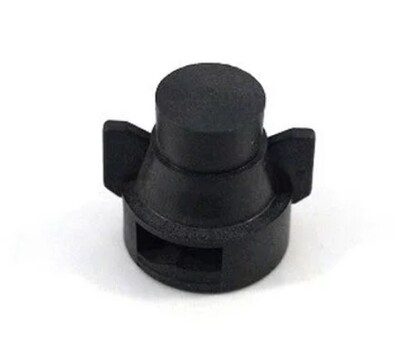

13 - Cap & Gasket, Shut off - SS-19843NYR

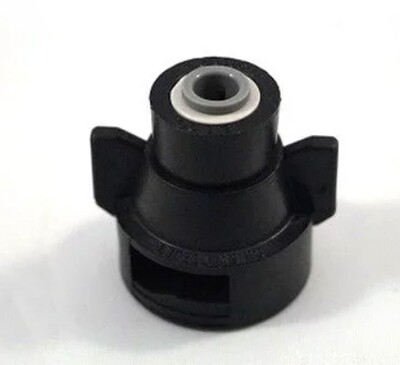

41 - TeeJet Nozzle, Con w/1/4 PTC & Washer - SS-QJ98588 - 1/4

85 ft. - Tubing, Black, 1/4" Solid - WW1215

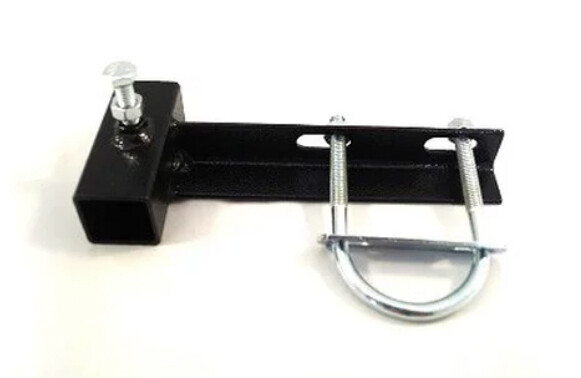

56 - WW Mounting Bracket - part number WW2344

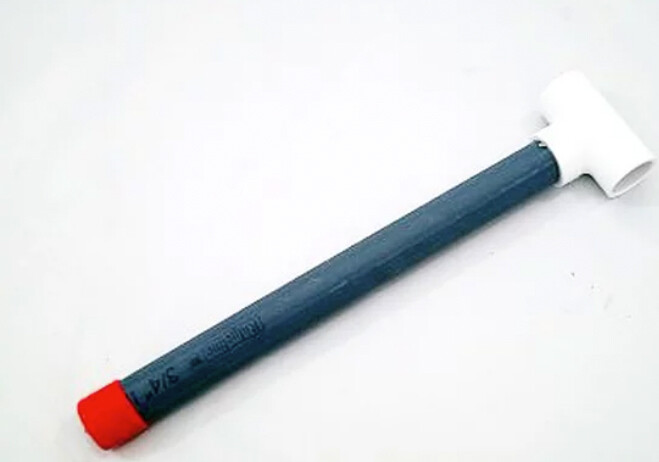

56 - T-Riser Assembly, Top Crop - part number WW2346-TC

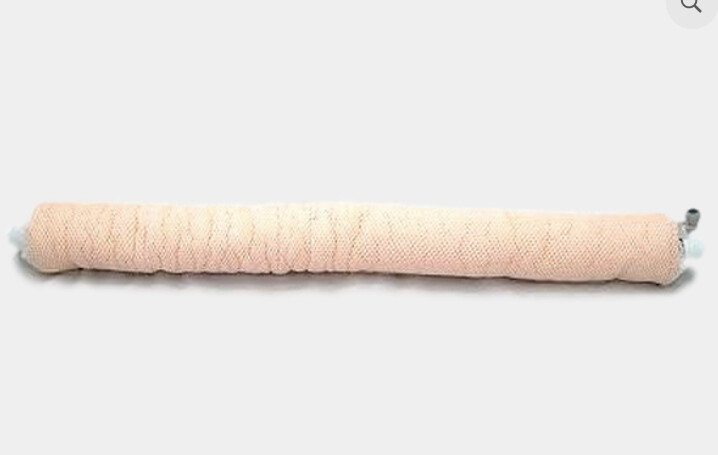

41 - 30" Sponge Assembly - WWTC30

Download the Instruction Manual.
